Package Dimensions 19.2 x 19 x 7 inches
Item Weight 14.72 pounds
Batteries 3 AA batteries required. (included)
Fabric Type If you need the replacement PP filter for WD-TSU or WD-TSC, please search for B08T1F7DVT.
Batteries Required? No
Included Components ·Faucet×1 set ·1/4” PE tubing×1 ·3/8” PE tubing×1 ·3/8”-1/2” feed water adapter×1 set ·Lock clip×4 ·Teflon tape×1 ·AA battery×3
How do I install the ultra-filtration under-sink filtration system?

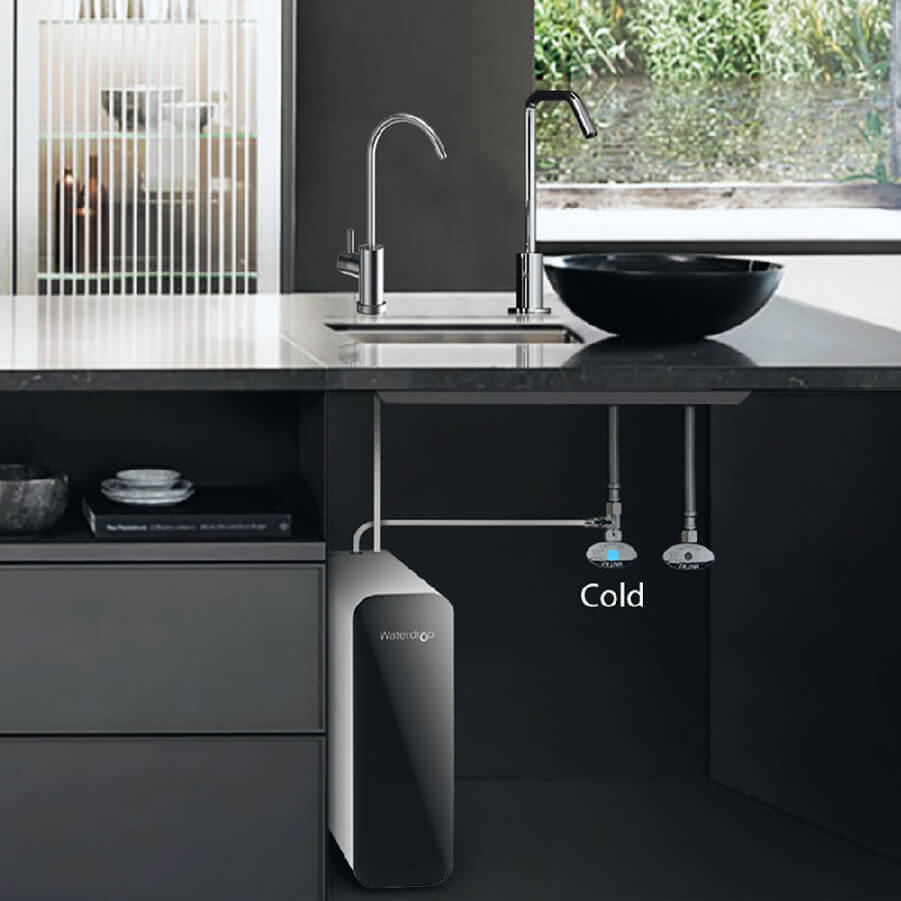

Step 1: Install the feed water adapter.
Step 2: Install the faucet.

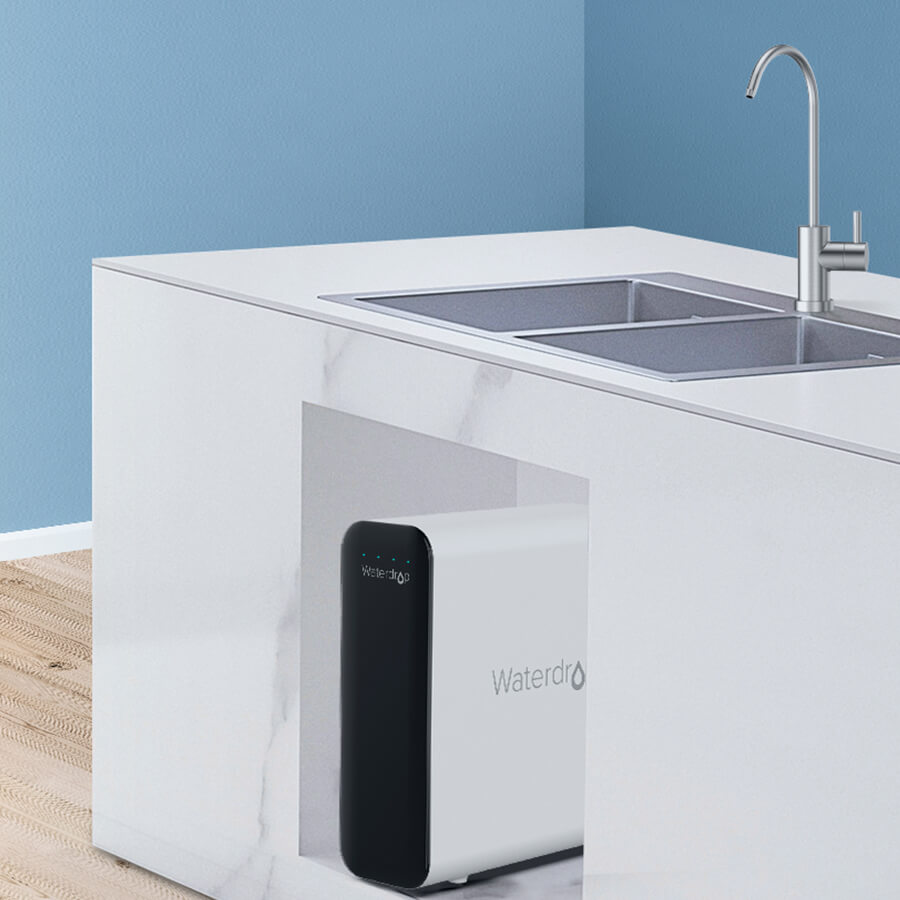

Step 3: Install the batteries and place the system.
Step 4: Connect tubing.
Step 5: Start up the system.
How do I drill a hole for the faucet of this Ultra-filtration Under Sink Water Filter System?
Tips: Remember to wear safety glasses and gloves to protect yourself while drilling the faucet hole.
Step 1: Choosing the right drill. Choose a diamond drill bit for granite, and a carbide drill bit for stainless steel. Do not use a hammer drill on natural stone, glass, or ceramic.
Step 2: Glue the sticker on your sink or countertop, then drill a hole referring to the sticker hole size (1%").
Step 3: Make an indent with a center punch on a stainless-steel sink before drilling to help guide the bit.
Step 4: Be careful when drilling on a porcelain sink, as it can be easily chipped. Apply downward pressure firmly on the bit until you break through the surface.
Step 5: Start at the lowest speed, then hold the drill straight with firm pressure to prevent the bit from walking on the counter.
Step 6: Once you break through the surface, swirl the drill a little to apply pressure in a circle evenly.
How often to change the filters of the ultra-filtration under-sink filtration system?
Note: Filter life may vary depending on source water quality and water usage. Please replace the filter according to the filter life indicators.

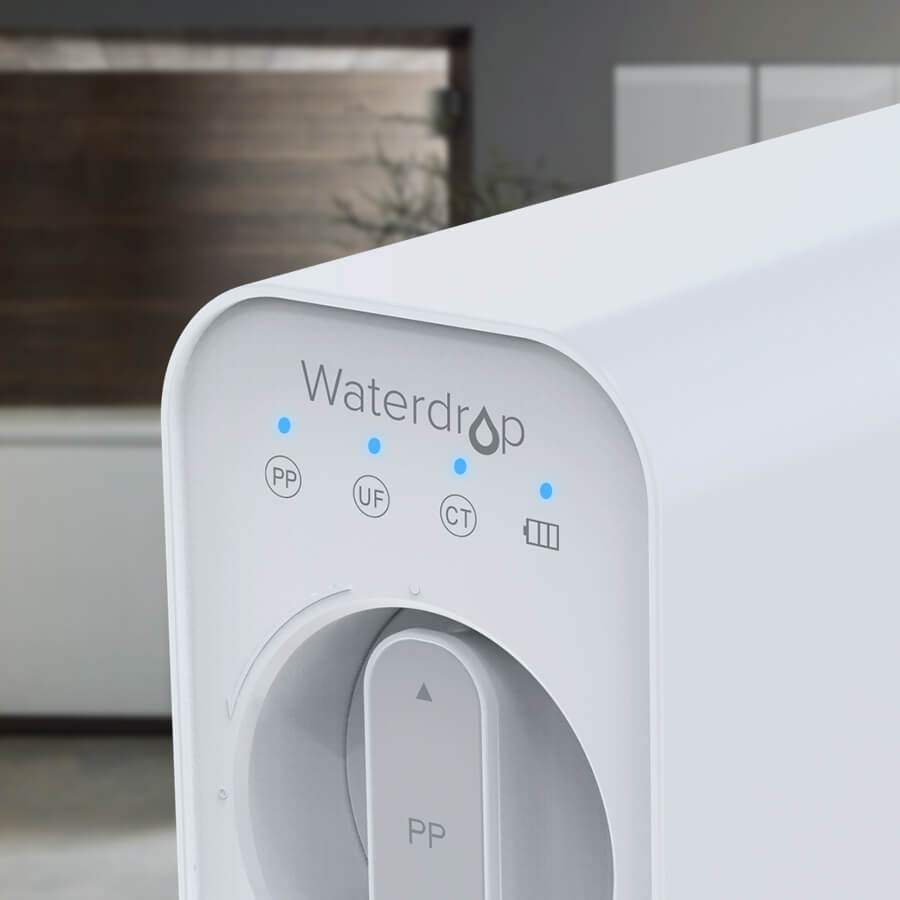

There are helpful electronic filter indicators (PP/UF/CT) on the front panel of the ultra-filtration under-sink filtration system, which will notify you of the filter replacement by the color change and beep. You can learn how electronic filter indicators work from the user manual on our product page.
What kind of warranty is for this ultra-filtration under-sink filtration system?

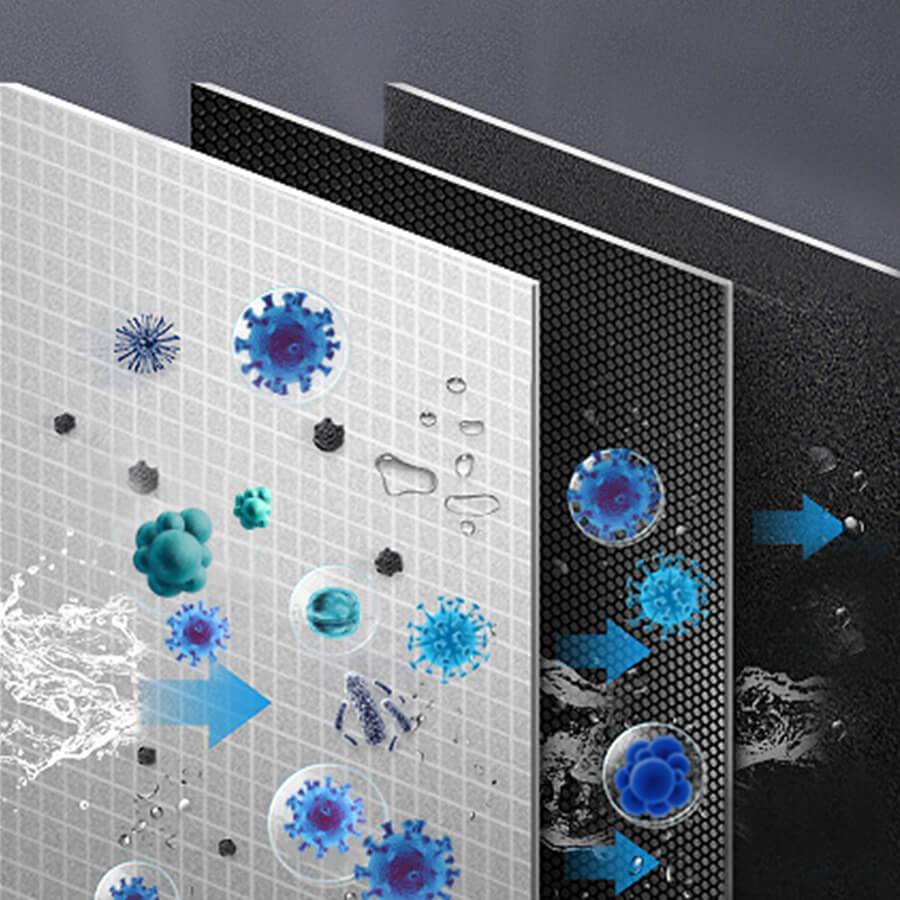

What are the benefits of ultrafiltration membranes?
Can I use the Waterdrop CS filter on this ultra-filtration under-sink filtration system?
